Decoding the Ballistics Chart for .308 Caliber: A Comprehensive Guide

Understanding a ballistics chart 308 is crucial for any shooter, hunter, or long-range enthusiast utilizing the popular .308 Winchester cartridge. This chart provides a detailed breakdown of how a .308 bullet behaves in flight, allowing for accurate estimations of bullet drop, wind drift, and overall trajectory. Mastering the information within a ballistics chart 308 empowers shooters to make informed decisions, leading to improved accuracy and ethical shots. This article will delve deep into the intricacies of a ballistics chart 308, providing a comprehensive guide for both novice and experienced marksmen.

What is a Ballistics Chart?

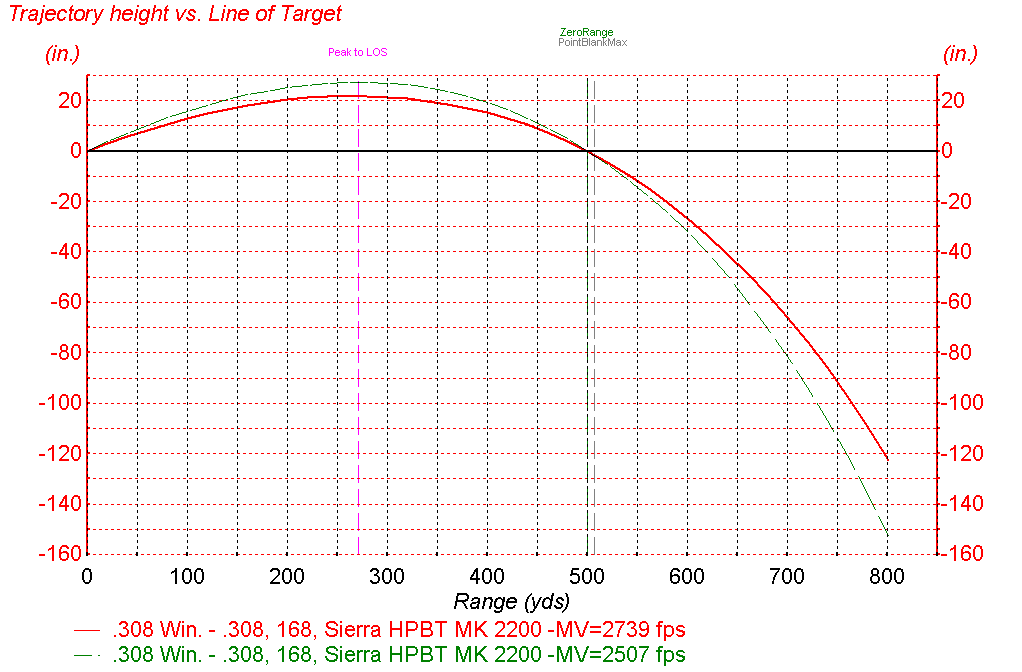

A ballistics chart, also sometimes referred to as a trajectory chart, is a table or graph that depicts the flight path of a projectile. It considers various factors that influence a bullet’s trajectory, such as muzzle velocity, ballistic coefficient, sight height, and environmental conditions like temperature and wind. A ballistics chart 308 specifically focuses on the .308 Winchester cartridge, presenting data relevant to its performance. These charts are often generated using ballistic calculators, which are software programs or online tools that use mathematical models to predict bullet behavior.

Key Components of a .308 Ballistics Chart

A typical ballistics chart 308 will contain several key elements, each providing valuable information about the bullet’s flight path. Understanding these components is essential for effectively using the chart.

Distance

This is the range, typically measured in yards or meters, at which the bullet’s trajectory is being evaluated. The chart will usually display data for various distances, often in increments of 25, 50, or 100 yards/meters.

Velocity

Velocity refers to the speed of the bullet at a specific distance. The ballistics chart 308 will show how the bullet’s velocity decreases as it travels downrange due to air resistance (drag). Velocity is typically measured in feet per second (fps) or meters per second (m/s).

Energy

Energy represents the kinetic energy of the bullet, which is directly related to its mass and velocity. This is an important factor for hunters, as it indicates the bullet’s potential to effectively and ethically take down game. Energy is usually measured in foot-pounds (ft-lbs) or Joules (J).

Bullet Drop

Bullet drop is the vertical distance the bullet falls below the line of sight at a specific distance. This is caused by gravity pulling the bullet downwards. The ballistics chart 308 provides bullet drop values, allowing the shooter to compensate by adjusting their sights or holdover. Bullet drop is usually measured in inches or centimeters.

Wind Drift

Wind drift is the horizontal distance the bullet is deflected by the wind. The ballistics chart 308 will typically provide wind drift values for a specific wind speed (e.g., 10 mph). The shooter can then adjust their hold or sights based on the actual wind conditions. Wind drift is usually measured in inches or centimeters.

Time of Flight

Time of flight is the time it takes for the bullet to reach a specific distance. This information can be useful for timing shots on moving targets. Time of flight is usually measured in seconds.

Factors Affecting the .308 Ballistics Chart

Several factors can influence the accuracy of a ballistics chart 308. It’s important to understand these factors to interpret the chart correctly and make accurate adjustments.

Muzzle Velocity

The initial velocity of the bullet as it leaves the muzzle is a crucial factor. Higher muzzle velocity generally results in a flatter trajectory and less bullet drop. Muzzle velocity is determined by the cartridge load, barrel length, and firearm. Always use the actual muzzle velocity for your specific firearm and ammunition when generating or using a ballistics chart 308.

Ballistic Coefficient (BC)

The ballistic coefficient (BC) is a measure of a bullet’s ability to overcome air resistance. A higher BC indicates a more aerodynamic bullet that will retain its velocity better and experience less bullet drop and wind drift. Different .308 bullets have different BC values, so it’s essential to use the correct BC for the specific bullet you are using in your ballistics chart 308.

Sight Height

Sight height is the vertical distance between the center of the scope or sights and the center of the bore. This affects the trajectory because the bullet initially travels slightly upwards to intersect the line of sight at the zero distance. A higher sight height will generally result in a slightly different trajectory than a lower sight height. Input your correct sight height into any ballistic calculator when creating a ballistics chart 308.

Environmental Conditions

Environmental conditions such as temperature, air pressure (altitude), and humidity can also affect bullet trajectory. Temperature affects the density of the air, which in turn affects drag. Air pressure decreases with altitude, resulting in less drag. Humidity can also have a minor effect on air density. Many ballistic calculators allow you to input these environmental conditions to generate a more accurate ballistics chart 308.

Ammunition

Different .308 ammunition types will have different ballistics. Bullet weight, bullet shape, and powder charge all contribute to variations in muzzle velocity and ballistic coefficient. Always use a ballistics chart 308 specific to the ammunition you are using.

Creating Your Own .308 Ballistics Chart

While pre-generated ballistics chart 308 examples can be found online or in reloading manuals, creating your own personalized chart is the best way to ensure accuracy. Here’s how:

Determine Your Muzzle Velocity: The most accurate way to determine your muzzle velocity is by using a chronograph. Shoot several rounds over the chronograph and calculate the average muzzle velocity.
Gather Bullet Information: Find the ballistic coefficient (BC) for the specific bullet you are using. This information is usually provided by the bullet manufacturer.
Measure Sight Height: Accurately measure the distance between the center of your scope and the center of the bore.
Choose a Ballistic Calculator: There are many free online ballistic calculators and smartphone apps available. Some popular options include Hornady 4DOF, Strelok Pro, and Applied Ballistics.
Input Data: Enter your muzzle velocity, ballistic coefficient, sight height, zero distance, and environmental conditions into the ballistic calculator.
Generate the Chart: The ballistic calculator will generate a ballistics chart 308 based on the data you provided. You can usually customize the chart to display the data you need, such as bullet drop, wind drift, velocity, and energy.
Validate and Adjust: After generating your chart, validate its accuracy by shooting at various distances. If necessary, adjust your inputs (especially muzzle velocity) to match your actual results.

Using a .308 Ballistics Chart in the Field

Once you have a reliable ballistics chart 308, you can use it to make accurate shots in the field. Here are some tips:

Range Estimation: Accurately estimate the distance to your target. Laser rangefinders are highly recommended for precise range estimation.
Wind Estimation: Assess the wind speed and direction. Use wind flags, mirage, or other indicators to help estimate the wind.
Adjust for Bullet Drop: Use the bullet drop values from your ballistics chart 308 to adjust your sights or holdover.
Adjust for Wind Drift: Use the wind drift values from your chart to adjust your hold. Remember that wind drift is affected by wind speed and direction.
Practice: Practice shooting at various distances and wind conditions to become proficient at using your ballistics chart 308. [See also: Long Range Shooting Techniques]

Common Mistakes When Using Ballistics Charts

Even with a good ballistics chart 308, it’s easy to make mistakes that can affect your accuracy. Here are some common pitfalls to avoid:

Using Incorrect Data: Ensure you are using the correct muzzle velocity, ballistic coefficient, and sight height for your specific firearm and ammunition.
Ignoring Environmental Conditions: Environmental conditions can significantly affect bullet trajectory. Be sure to account for temperature, air pressure, and wind.
Poor Range Estimation: Inaccurate range estimation is a common cause of missed shots. Use a laser rangefinder for the most accurate results.
Overconfidence: A ballistics chart 308 is a valuable tool, but it’s not a substitute for practice and experience.
Not Validating the Chart: Always validate your chart by shooting at various distances and wind conditions.

Conclusion

A ballistics chart 308 is an indispensable tool for anyone who wants to achieve consistent accuracy with the .308 Winchester cartridge. By understanding the key components of the chart, the factors that affect bullet trajectory, and how to use the chart effectively, you can significantly improve your shooting performance. Take the time to create a personalized ballistics chart 308 for your specific firearm and ammunition, and practice using it in the field. With dedication and attention to detail, you can master the art of long-range shooting with the .308.
