How To Patch A Plastic Fuel Tank: Step-by-Step HDPE Repair Guide

Patching a plastic fuel tank requires identifying the polymer matrix—typically High-Density Polyethylene (HDPE)—and executing a thermal fusion weld or applying a specialized fuel-resistant epoxy system. Perfect surface neutralization, mechanical oxidation removal, and thorough purging of volatile vapors are essential to ensure structural integrity and leak-free performance. Following precise temperature thresholds between 260°C and 300°C (500°F to 570°F) during plastic welding prevents material thermal degradation while re-establishing chemical-resistant bonds.

Pre-Operation Safety Protocols & Equipment Setup

Working on fuel containment systems presents inherent flammability risks and chemical hazards. Most modern automotive, marine, and outdoor power equipment fuel tanks are manufactured from High-Density Polyethylene (HDPE, resin identification code #2) or Cross-linked Polyethylene (XLPE). Before initiating any mechanical prep or applying thermal energy, you must complete full decontamination to lower volatile organic compound (VOC) concentrations below explosive thresholds.

+-----------------------------------------------------------------------+ | WARNING: Thermal welding generates heat sources capable of igniting | | residual fuel vapors. Always purge tanks with water and inert gas. | +-----------------------------------------------------------------------+

Required Equipment and Material Matrix

• Essential Tools & Welding Gear: Plastic welding gun or temperature-controlled hot air welder, HDPE filler rods (matching parent material), 80-grit and 120-grit aluminum oxide sandpaper, carbide rotary deburring tool or V-groove scraper, variable-speed drill with a 1/8-inch (3mm) drill bit, and a broad-blade putty knife or smoothing tip.
• Chemicals & Surface Prep Agents: Non-chlorinated brake cleaner, pure isopropyl alcohol (99%), clean microfiber towels, and a temporary surface-treatment flame tool (propane torch).
• Mandatory Safety Gear & Standards: N95 particulate/organic vapor respirator, nitrile chemical-resistant gloves, ANSI-approved impact goggles, and an active combustible gas detector or inert purging agent (CO2 or Nitrogen flow).
• Time & Cost Estimates: Total active project duration ranges from 2 to 4 hours (excluding a 24-hour full cure window if using chemical resins). Total estimated DIY material cost is $30 to $70.

Step-by-Step Plastic Fuel Tank Welding & Repair Workflow

Step 1: Decontaminate, Drain, and Inert the Tank Assembly

Complete removal of liquid hydrocarbons and gaseous vapors is non-negotiable.

1. Drain all liquid fuel into an approved containment vessel. Disconnect all fuel lines, sending units, floats, and rollover valves.
2. Remove the tank completely from the vehicle or equipment chassis to allow full 360-degree rotation and access.
3. Flush the interior space repeatedly using a mixture of hot water and heavy-duty degreasing detergent. Agitate thoroughly to dissolve fuel varnish and sloshing residue.
4. Rinse until no rainbow sheen or fuel odor remains in the rinse water.
5. Direct a continuous stream of low-pressure dry air through the tank for at least 30 minutes, or flood the tank interior with an inert gas (such as carbon dioxide or nitrogen) to displace atmospheric oxygen below the Lower Explosive Limit (LEL).

Warning: Never rely solely on air-drying to eliminate fuel vapors inside a closed container. Vapors absorbed into the porous inner walls of polyethylene can migrate back into the air cavity, creating an unseen explosion hazard when heat is applied.

Step 2: Identify the Fracture and Stop-Drill Crack Termini

Locating the absolute ends of a stress crack prevents future propagation under vibration and thermal cycling.

1. Clean the exterior region around the damage zone using a clean rag saturated with isopropyl alcohol.
2. Inspect the defect under high-intensity lighting. Flex the plastic lightly if necessary to expose hairline extensions.
3. Chuck a 1/8-inch (3mm) drill bit into a hand drill. Position the bit directly over the terminal tip at each end of the crack.
4. Drill completely through the plastic wall thickness at both endpoints. These round relief holes eliminate localized stress risers, halting further crack propagation along the structural plane.

Step 3: V-Groove Excavation and Surface Flame Oxidation

Polymers like HDPE feature low surface energy, meaning adhesives and filler materials struggle to wet out and bond without precise surface geometry and chemical activation.

1. Take a carbide rotary bit or manual triangular scraper and carve a V-shaped trough along the full length of the crack, extending between the two stop-drilled holes.
2. Form the V-groove to an angle of 80 to 90 degrees, penetrating roughly 50% to 70% into the total wall depth of the tank. Do not cut completely through the wall along the main body of the crack.
3. Scuff the outer perimeter extending 1.5 inches beyond the groove in every direction using 80-grit sandpaper to strip off oxidized UV-degraded plastic.
4. Wipe the abraded region with isopropyl alcohol to purge dust and organic contaminants.
5. Lightly pass the blue tip of a propane torch flame over the sanded plastic at a speed of 2 inches per second. Flame treating oxidizes the non-polar HDPE surface, temporarily raising its surface energy to maximize molecular bonding with the hot plastic filler.

Pro-Tip: The flame treatment should not melt or discolor the plastic; it only needs to briefly warm the surface. If the plastic takes on a glassy, wet sheen, you have applied too much heat.

Step 4: Perform Thermal Plastic Fusion Welding

Thermal welding forms a monolithic structural bond by melting the parent tank material and the filler rod simultaneously.

Welding Gun Nozzle (260°C - 300°C) \ \ HDPE Rod (45° Angle) \ | v v ================================= <-- Base Plastic Surface \ V / \___/ <-- Prepared V-Groove (50-70% Depth) =================================

1. Select an HDPE filler rod matching the tank base material. Match circular rods for deep V-grooves or flat strip rods for broad reinforcement caps.
2. Preheat your hot air plastic welder to a target working temperature between 260°C and 300°C (500°F to 570°F).
3. Hold the welder nozzle approximately 1/4-inch away from the start of the V-groove until the base plastic turns clear and slightly pliable.
4. Angle the filler rod at 45 degrees to the work surface. Direct the hot air stream equally onto both the base plastic V-groove and the tip of the filler rod.
5. As the filler rod begins to melt, press it down firmly into the apex of the V-groove using a steady, pushing motion. Apply downward pressure to force out trapped air pockets.
6. Progress down the crack at a uniform speed, creating a continuous, slightly crowned weld bead. Continue the bead 1/2-inch past each stop-drilled end hole.
7. Use a heated flat iron attachment or a warm putty knife to smooth the crown of the weld, feathering its outer edges flush with the surrounding tank surface.

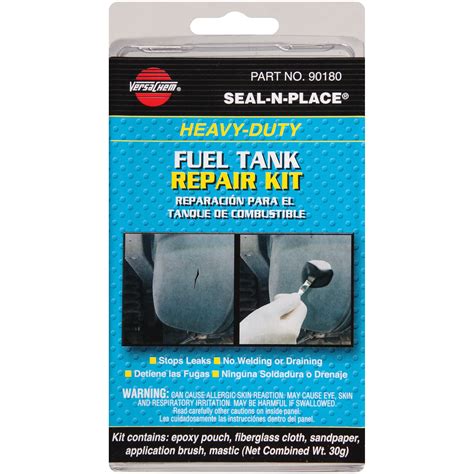

Step 5: Execute Alternative Fuel-Resistant Epoxy Patching (Non-Welding Option)

If thermal plastic welding equipment is unavailable, or if working on non-weldable XLPE structures, utilize a high-density structural epoxy engineered for hydrocarbon submersion.

1. Complete Step 1 through Step 3 (cleaning, stop-drilling, sanding, and flame-treating).
2. Cut a section of stainless steel or brass reinforcement mesh to extend 1 inch beyond the repair perimeter.
3. Mix a two-part specialized fuel-resistant epoxy resin (such as an ethanol-tolerant epoxy paste) according to precise manufacturer stoichiometric ratios.
4. Spread a 1/16-inch thick layer of mixed epoxy over the prepared site.
5. Press the wire mesh firmly into the wet epoxy layer until the resin extrudes upward through the weave.
6. Apply a top layer of epoxy over the mesh, smoothing the edges into the un-sanded base plastic. Allow a full 24-hour cure cycle at an ambient temperature of at least 21°C (70°F).

Step 6: Cool, Inspect, and Pneumatic Leak Test

Never accelerate the cooling process of welded polymers using cold water, as rapid quenching causes micro-fracturing and internal residual stress.

1. Allow the welded site to cool naturally to room temperature over a 30-to-45-minute window.
2. Perform a visual quality check: look for smooth, continuous edges free from air bubbles, charring, or un-melted filler rod seams.
3. Block all tank ports, fuel necks, and return lines using rubber expansion plugs.
4. Attach a low-pressure regulator and pressure gauge to the main vent line. Introduce regulated compressed air until internal pressure reaches 1.5 to 2.0 PSI.
5. Spray a liberal coating of leak-detection solution or soapy water across the entire repaired area and surrounding seam lines.
6. Observe the repair for 5 minutes. The appearance of expanding foam or rising bubbles indicates micro-porosity requiring localized re-melting or additional filler deposition.

Warning: Do not exceed 3.0 PSI during pneumatic testing. Excessive pressure will permanently distort thin-walled plastic fuel tanks or burst factory mold seams.

Material Compatibility & Repair Method Specifications

Choosing the correct repair approach depends on the tank's raw polymer composition, access geometry, and operational environment.

Troubleshooting Common Repair Failures

Issue 1: Patch Separates or Peels Away from the Tank Wall

• Root Cause: The HDPE surface was not flame-treated to increase surface energy, or residual fuel oils remained embedded in the plastic pores during welding.
• Actionable Fix: Mechanically grind away all detached material down to clean virgin plastic using an 80-grit sanding disc. Solvent-clean the area with pure isopropyl alcohol, execute a brief surface flame treatment with a propane torch, and re-weld using fresh HDPE filler rod while maintaining consistent pressure.

Issue 2: Thermal Distortion or Burn-Through of the Tank Shell

• Root Cause: Hot air welder temperature was set too high (>320°C / 600°F), or the tool dwell time in one spot was excessive, melting through thin wall sections.
• Actionable Fix: Lower the temperature setpoint to 260°C (500°F) and increase gun travel speed along the groove. For burn-through holes, back up the inside of the tank wall (if accessible) with a temporary aluminum backing plate, then deposit overlapping cross-hatched layers of HDPE filler rod to bridge the void.

Issue 3: Persistent Micro-Bubbling During Soap-Solution Pressure Testing

• Root Cause: Air entrapment caused by cold-lapping (applying melted filler rod over un-melted base plastic) or insufficient downward pressure on the welding rod.
• Actionable Fix: Depressurize the tank completely. Take a heated flat-iron welding tip and slowly pass over the pinhole zone, re-flowing the existing weld bead into a unified mass. Add a secondary thin flat strip of HDPE filler directly over the seam as a cap layer, feathering all edges.

Frequently Asked Questions

Can you patch a plastic fuel tank without removing it from the vehicle?

While localized emergency repairs using chemical putties can be performed in-place for small punctures, permanent structural repairs require tank removal. Complete removal is necessary to drain remaining fuel, wash out explosive vapors, stop-drill crack tips accurately, and maintain the correct angle for thermal welding tools.

Why do standard epoxies and superglues fail on plastic gas tanks?

Most plastic fuel tanks are constructed from High-Density Polyethylene (HDPE), a non-polar polymer with extremely low surface energy. Household epoxies, cyanoacrylates (superglue), and standard auto-body fillers cannot form chemical bonds with HDPE, causing them to delaminate under structural vibration, thermal expansion, and exposure to gasoline solvents.

What setting should I use on a plastic welder for HDPE tanks?

Set your hot air plastic welder or heat source between 260°C and 300°C (500°F to 570°F). Exceeding 315°C (600°F) will overheat the polyethylene, breaking down its polymer chains into brittle black carbon ash and rendering the weld structurally weak.

How do I know if my fuel tank is weldable HDPE or non-weldable XLPE?

Check the bottom of the tank for molded plastic recycling symbols; resin code #2 or the letters "HDPE" designate high-density polyethylene, which melts and welds cleanly. Cross-linked polyethylene (XLPE) will not melt smoothly when heat is applied—it chars, smokes, or swells instead of flowing—meaning it must be repaired using structural epoxy mesh methods rather than thermal welding.

Restore Your Equipment's Fuel System Integrity

Executing a proper plastic weld restores structural integrity and chemical resistance, saving hundreds of dollars over total tank replacement. Gather your safety gear, surface preparation tools, and matching HDPE rod stock today to repair your tank to factory-grade standards.
