How To Tie A Figure Eight Knot For Rock Climbing: The Definitive Step-by-Step Guide
The figure eight follow-through is the gold standard tie-in knot for rock climbing, valued for its exceptional security, ease of visual inspection, and ability to retain up to 75-80% of a rope's breaking strength. Mastering this fundamental technique requires precise tail management, exact dressing, and consistent verification before every single ascent.
Pre-Ascent Equipment Setup and Safety Benchmarks
Before stepping onto a rock face, understanding your gear and the operational environment is non-negotiable. The figure eight follow-through is universally taught by the American Mountain Guides Association (AMGA) and the Access Fund as the primary connection point between a climber and their dynamic rope.
- Essential Gear Checklist:
- Dynamic rock climbing rope (single rope diameter typically between 9.4mm and 10.2mm, UIAA-certified).
- Climbing harness with a structurally sound belay loop and waist belt.
- Flat surface or clean ground to flake the rope and prevent kinks or twists.
- Mandatory Prerequisites:
- Working knowledge of rope handling and basic friction knots.
- Understanding of the "double-check" safety culture in vertical environments.
- Benchmarks & Budgets:
- Estimated time to tie cleanly: 15 to 30 seconds.
- Minimum working tail length requirement: 3 inches (approximately four finger-widths or 10 centimeters) past the final knot structure.
Step-by-Step Execution of the Figure Eight Follow-Through
Step 1: Measure and Pull Your Working Length
Begin by pulling a generous arm-span of rope from your climbing rope stack, measuring from your hand to the middle of your chest. This ensures you have enough working end to complete the entire knot structure without running short.
- Hold the rope with the working end (the tail) in one hand and the standing part (leading back to the anchor or rope bag) in the other.
- Measure approximately 3 feet (about 1 meter) of tail end to accommodate the initial loop and the subsequent follow-through steps.
Warning: Never attempt to tie-in with less than 3 feet of working tail. A short tail severely compromises the safety margin if the knot shifts or slips under heavy cyclic loading.
Step 2: Form the Initial Single Figure Eight
Take your working end and form a bight, crossing the tail over the top of the standing part to create a loop resembling a teardrop.
- Take the working tail and loop it underneath the standing line, wrapping it completely around the back.
- Bring the working tail down through the top of the initial loop you created, forming the classic shape of the number eight.
Pro-Tip: Keep the single figure eight compact and neat on your hand before you begin threading your harness to ensure the twists do not get jumbled.
Step 3: Thread the Harness Hard Points
Take the working tail of your newly formed figure eight and route it directly through both the waist belt and the belay loop of your climbing harness simultaneously.
- Ensure you thread from the outside in (or bottom to top, depending on harness design, but always capturing both structural loops).
- Pull the entire knot down toward your harness until there is approximately an arm's length of rope remaining between the knot and your body.
Warning: Skipping either the waist belt or the leg-loop-adjacent belay loop during this threading phase is a catastrophic error that leads to immediate system failure. Always verify both loops are captured.
Step 4: Trace the Path Back (The Follow-Through)
This is the defining action that transforms a standard figure eight into a secure loop tied to your harness. You must meticulously retrace the exact path of the original single figure eight with your working tail.
- Take your working tail and follow the exact path of the existing rope backward, keeping parallel alongside it.
- Trace around the turns, up through the loops, and out the top side. Do not cross strands over one another; they must run parallel and clean (known as "dressing" the knot).
Step 5: Dress and Tighten the System
A poorly dressed knot can slip unexpectedly or jam so tightly after a fall that it becomes impossible to untie.
- Adjust the strands individually by pulling them tight in opposite directions, starting from the knot body and working outward toward the tail and standing line.
- Ensure there are five distinct parallel pairs of rope visible within the body of the figure eight.
Step 6: Tie the Backup Stopper Knot
To prevent the working tail from working its way back through the primary knot under dynamic movement or body friction, a secondary backup knot is mandatory.
- Take your remaining working tail and wrap it tightly around the standing part of the rope.
- Tuck the tail through the resulting loop to form an overhand knot flush against the main figure eight structure, leaving at least 3 inches of tail protruding.

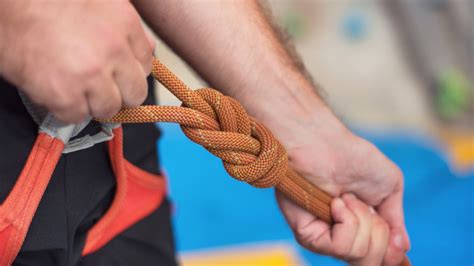

Figure 8 Knots Instructions : How to Tie a Figure 8 Knot? Uses, Steps ...
Technical Specifications of Climbing Knot Systems
| Knot Type | Typical Strength Retention | Primary Climbing Application | Ease of Untying After Loading | Inspection Complexity |
|---|---|---|---|---|
| Figure Eight Follow-Through | 75% - 80% | Harness tie-in point | Moderate to Difficult | Low (Visual parallel strands) |
| Bowline on a Bight | 75% - 77% | Anchor building / Canyoneering | Very Easy | High (Requires backup knot) |
| Clove Hitch | 60% - 75% | Master point anchoring / Adjustability | Extremely Easy | Low |
| Water Knot (Ring Bend) | 65% - 70% | Joining tubular webbing slings | Difficult | Moderate |
Common Site Failures and Field Fixes
- Root Cause: Crossing strands (cross-loading or "guts" crossing over the front of the knot) during the follow-through phase.
- Actionable Fix: Untrace the entire tail, lay the single figure eight flat on your palm, and carefully re-thread the harness while maintaining strict parallel alignment of the rope pairs.
- Root Cause: Insufficient tail length remaining after the finishing stopper knot (less than 2 inches).
- Actionable Fix: Untie the stopper knot, feed an additional 6 inches of slack from the standing part through the harness loops, re-execute the trace, and retie the stopper knot with a full 3-to-4-inch tail.
- Root Cause: Loose and sloppy knot dressing leading to a "capsized" or rolled knot structure under body weight.
- Actionable Fix: Before leaving the ground, sit back completely into your harness while a partner holds the rope to pre-set and seat the knot securely.
Frequently Asked Questions
Why is the figure eight preferred over the bowline for tie-in?
The figure eight follow-through is vastly preferred because its geometric structure makes it inherently easier for both the climber and their partner to visually inspect for accuracy at a glance. Additionally, it is less prone to untying itself under cyclic loading and movement compared to an unbacked bowline.
What should I do if my figure eight knot gets jammed after a hard fall?
A heavily loaded knot can weld itself shut under body weight. To loosen it, push the two parallel strands that run into the center of the knot toward each other rather than pulling on the working tail or the loop.
Is a stopper knot strictly required on a figure eight follow-through?
Yes, industry safety standards and mountain guides mandate a stopper knot (such as a double overhand) to secure the working tail. This prevents the tail from slipping back into the main knot structure if the rope flexes or flails during a climb.
How often should I untie and retie my climbing knot?
You should untie and retie your figure eight knot at least at the start of every climbing session, and anytime you untie to take a break or switch leads. Regularly shifting the location of the knot along the rope also distributes wear evenly across the dynamic line.
Take the next step in mastering your vertical safety systems by practicing your tie-ins under the supervision of a certified climbing instructor or mountain guide today.
